Supa Troughs

Made from durable 5mm steel, with a service height of 581mm from the ground, Cyclone SUPA troughs are designed specifically for the needs of larger livestock, including cattle and horses.

  • Durable:
    Cyclone steel troughs are strong, resisting issues found in more conventional poly and concrete troughs such as puncturing or cracking.

  • Steel Construction:
    Stronger than plastic troughs, lighter than concrete troughs. Hot dipped Galvanised.

  • Portability:
    When empty, Cyclone steel troughs can easily be relocated or transported

  • Heat Dissipation:
    Water Temperatures are similar to poly and concrete troughs, however steel is a superior thermal conductor to both water will be cooler much quicker at the end of the day, particularly when compared to concrete.

  • Independent Feet:
    Cyclone steel troughs sit above the ground due to their clever feet design and steel construction method, allowing water to stay cooler due to air flow around the trough.

  • Easy Installation:
    Cyclone steel trough’s feet design assists in easy installation and levelling due to ground preparation requirements for the feet only, peg down points contained within the feet also assist in locating and anchoring down the trough if desired.

  • Easy Cleaning:
    Cyclone steel troughs feature a 4 ½” bung on the bottom of the trough, allowing for quick and efficient water removal and easier cleaning.

  • Dual Valve Inlet sizes:
    Cyclone Supa Troughs feature 2 inch (50mm) and 3 inch (75mm) valve inlet options providing flexible valve installation and water flow rate options across the range.

  • Valve Cover:
    Steel valve cover over valve/float – prevents damage by livestock and provides easy access to adjust float.

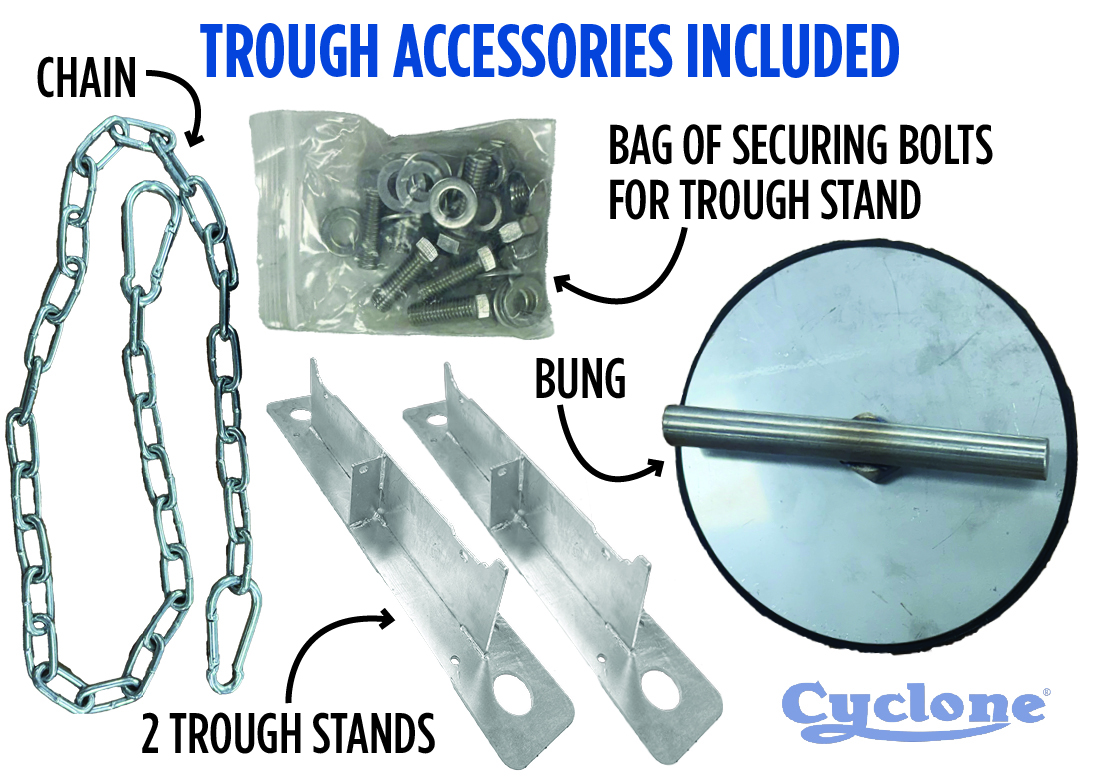

  • Accessories: Available separately – bung/feet.


Specifications

Supa Troughs

Code

Product

Weight

Length

Capacity

322478 390L Supa Trough 145kg 2 metres 390 Litres
322479 590L Supa Trough 198kg 3 metres 590 Litres
322482 1140L Supa Trough 335kg 5.8 metres 1140 Litres
