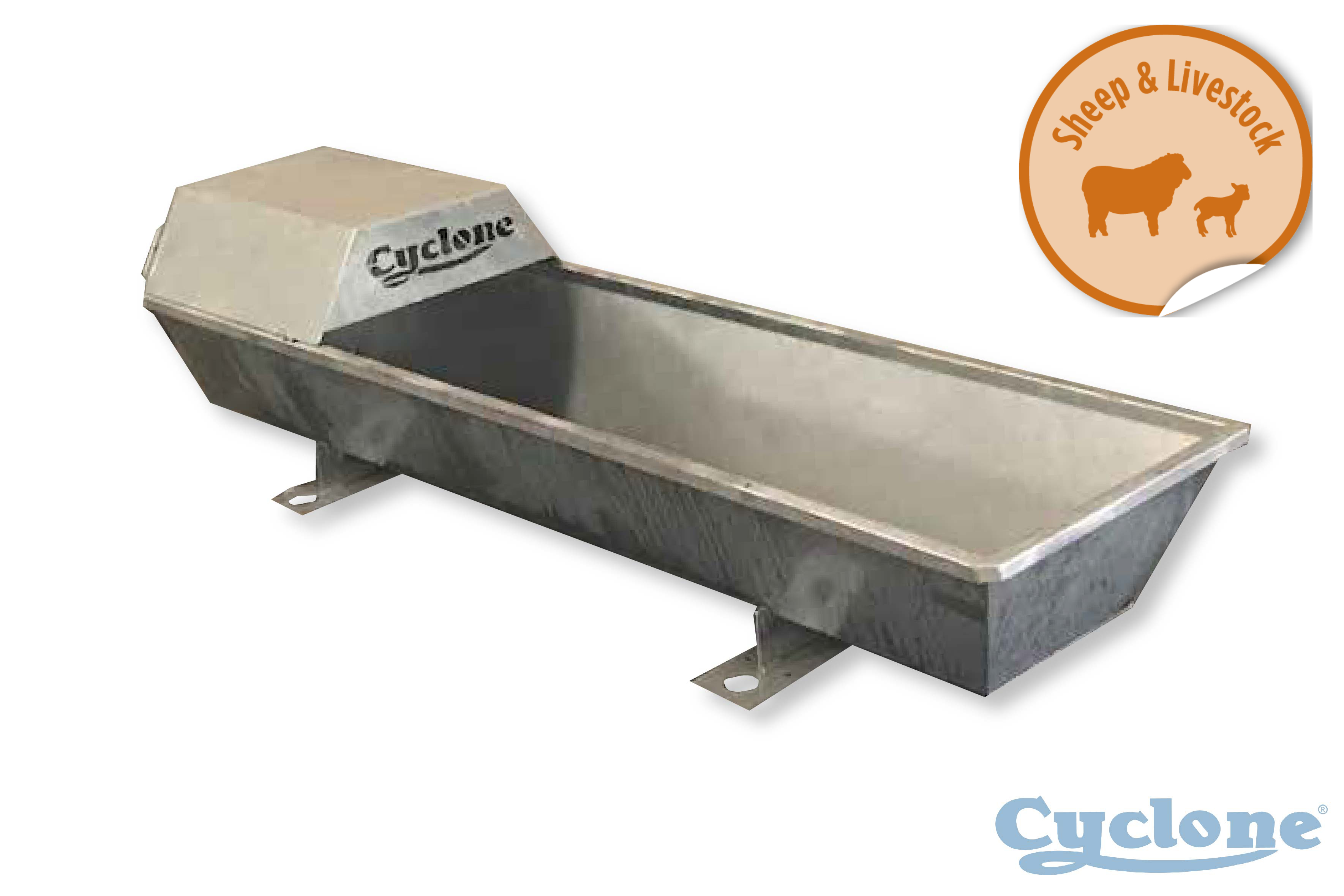

Made from durable 3mm steel, with a service height of 367mm from the ground, Cyclone troughs are designed specifically for the needs of smaller livestock, including sheep and goats.

  1. Durable:
    Cyclone steel troughs are strong, resisting issues found in more conventional poly and concrete troughs such as puncturing or cracking.

  2. Steel Construction:
    Stronger than plastic troughs, lighter than concrete troughs. Hot dipped Galvanised.

  3. Portability:
    When empty, Cyclone steel troughs can easily be relocated or transported

  4. Heat Dissipation:
    Water Temperatures are similar to poly and concrete troughs, however steel is a superior thermal conductor to both, water will be cooler much quicker at the end of the day, particularly when compared to concrete.

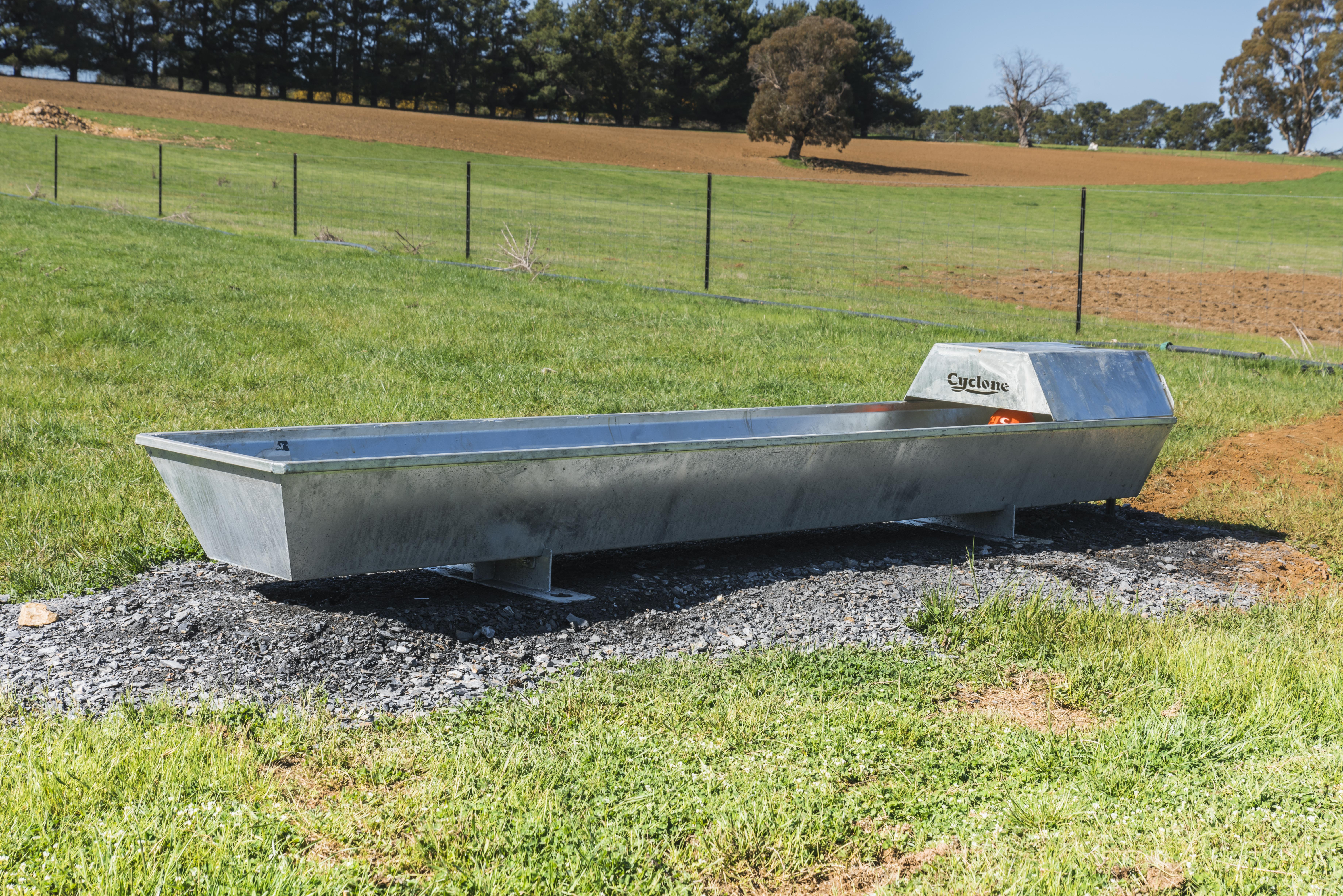

  5. Independent Feet:
    Cyclone steel troughs sit above the ground due to their clever feet design and steel construction method, allowing water to stay cooler due to air flow around the trough.

  6. Easy Installation:
    Cyclone steel trough’s feet design assists in easy installation and levelling due to ground preparation requirements for the feet only, peg down points contained within the feet also assist in locating and anchoring down the trough if desired.

  7. Easy Cleaning:
    Cyclone steel troughs feature a 4 ½” bung on the bottom of the trough, allowing for quick and efficient water removal and easier cleaning.

  8. Dual Valve Inlet sizes:
    Cyclone troughs feature 1 inch (25mm) and 2 inch (50mm) valve inlet options providing flexible valve installation and water flow rate options across the range.

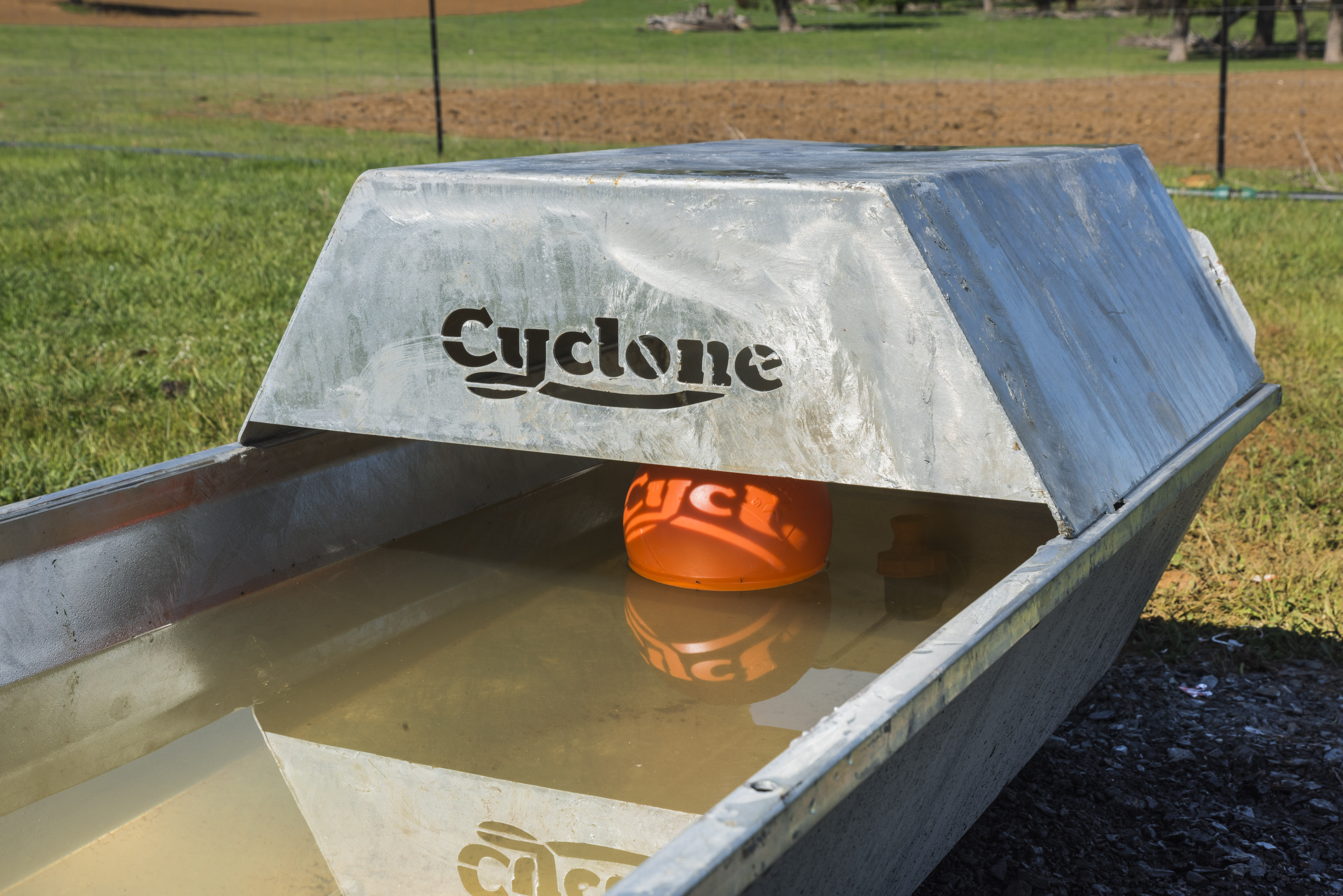

  9. Valve Cover:
    Steel valve cover over valve/float – prevents damage by livestock and provides easy access to adjust float.

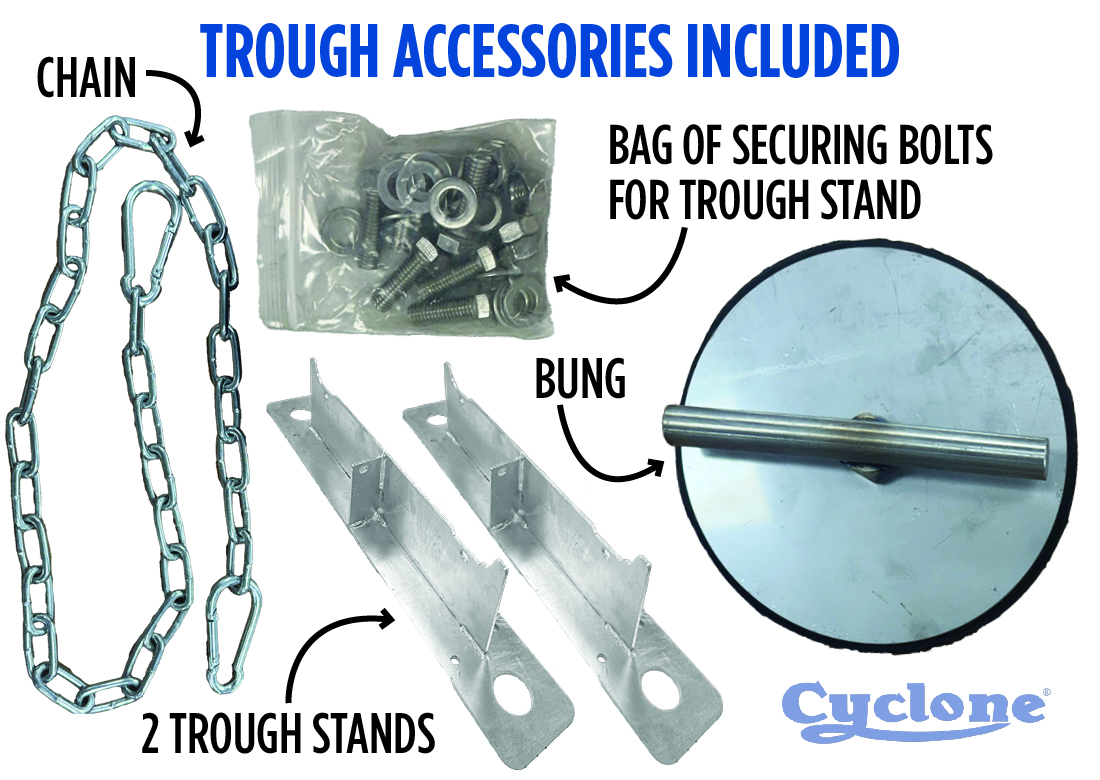

  10. Accessories: Available separately – bung/feet.

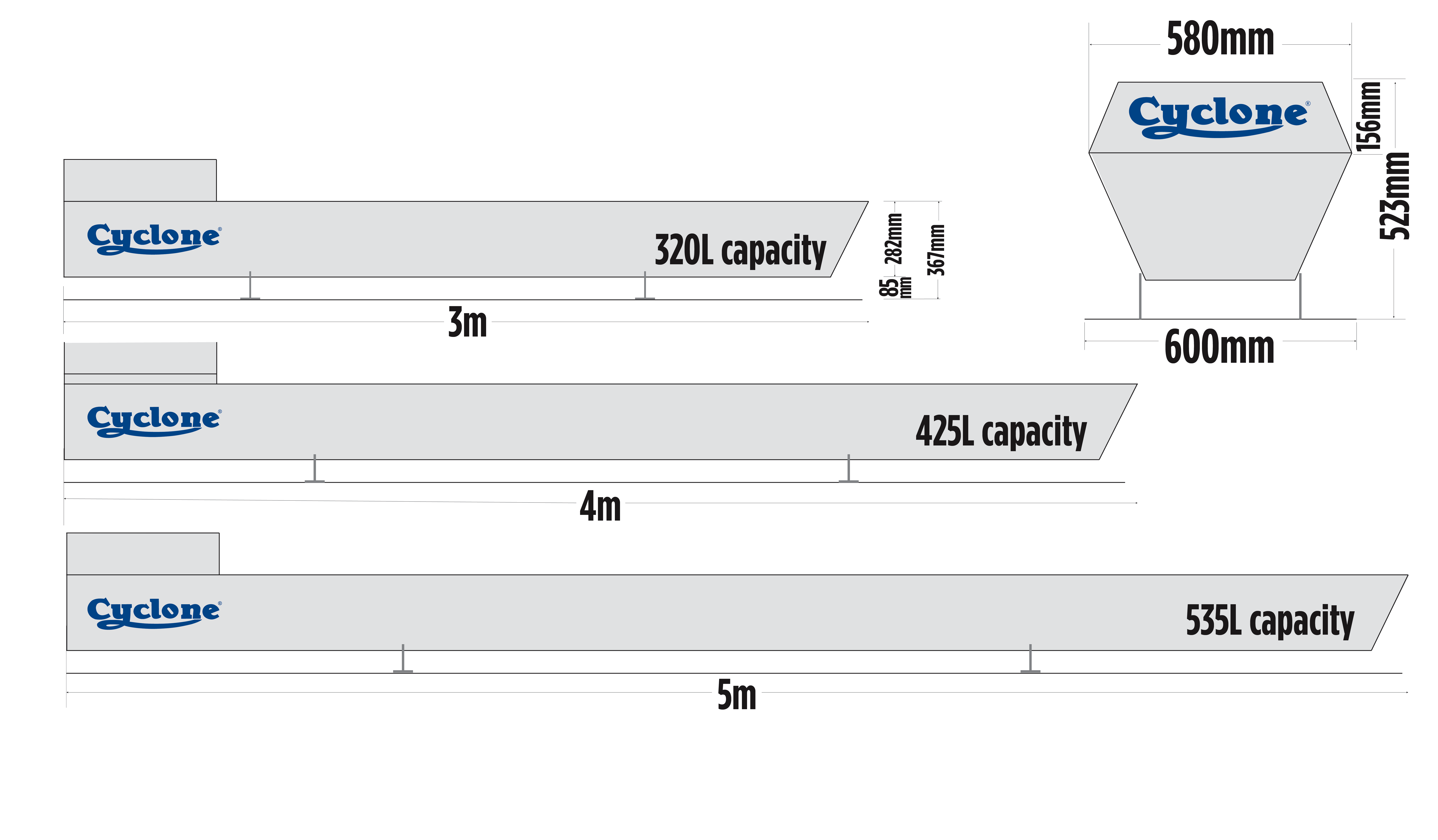

Specifications

Troughs

Code

Product

Weight

Length

Capacity

322438 210L Trough 71kg 2 Metres 210 Litres
322439 320L Trough 94kg 3 Metres 320 Litres
322480 425L Trough 118kg 4 Metres 425 Litres
322477 535L Trough 142kg 5 Metres 535 Litres
